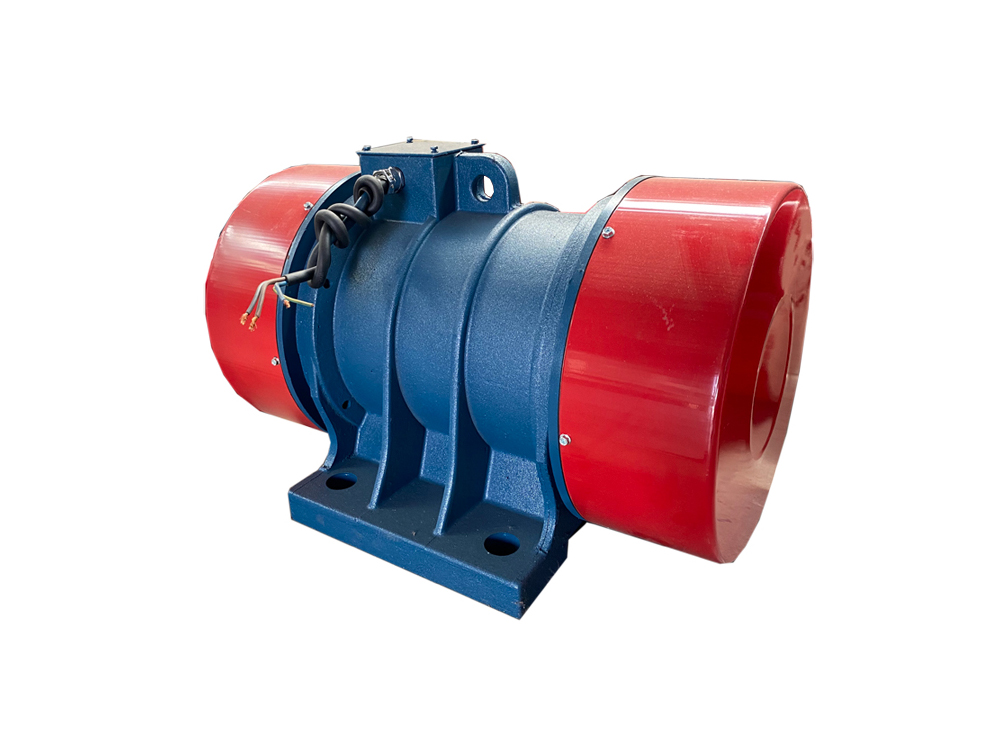

YZU系列振動源三相異步電機?是一種將動力源與振動源集成一體的三相異步電動機，專為工業振動設備設計。其結構包含定子、轉子和軸端可調偏心塊組，通過高速旋轉產生的離心力驅動振動篩、給料機等設備完成篩分、輸送等作業，廣泛應用于冶金、礦山、化工等高負載場景。一、?YZU系列振動源三相異步電機工作原理定子繞組接入三相交流電后生成旋轉磁場，轉子因電磁感應產生電流并與磁場相互作用形成電磁轉矩，驅動轉子旋轉（基礎三相異步電動機原理）。轉子軸兩端安裝可調偏心塊組，轉子高速旋轉時，偏心塊離心力公式為 ?F=G/g×r×ω2?（G為偏心塊質量，r為質心距軸距離，ω為角速度），形成周期性激振力。通過調整偏心塊夾角或電機轉速，無級調節激振力大小及振動頻率，適應不同工藝需求。二、?YZU系列振動源三相異步電機特點1、全封閉防塵結構，支持粉塵環境作業；采用強化軸承設計，維護周期長，僅需定期潤滑。2、激振力與功率匹配度高，體積小、重量輕；振幅穩定（基于非共振原理），噪音≤75dB。3、激振力范圍廣，支持多機組合實現垂直/水平復合振動模式，適配復雜工況。4、可定制特殊電壓（如660V）、頻率（60Hz）或耐高溫/高海拔。三、?YZU系列振動源三相異步電機參數及外形尺寸型號激振力(N)  額定轉速(Rpm)額定功率(Kw) 電流(A)電壓(V)安裝尺寸外形尺寸重量(Kg)ABHKABBBHDGLYZU-1-2100028600.090.423801308080121701401541626013YZU-1.5-2150028600.150.51308080121701401541626013.5YZU-2-2200028600.180.541308080121701401541626014YZU-2.5-2250028600.200.551308080121701401541626019YZU-3-2300028600.250.61509090141851501721828020YZU-5-2500028600.370.91509090141851501721828021YZU-8-280028600.751.75180110110182201802301834036YZU-10-21000028600.751.75180110110182201802301834037YZU-15-21500028601.12.3220140120222702252602541547YZU-20-22000028601.53.1260150140263202803102844580YZU-30-23000028601.53.63101701603338028535630536130YZU-50-25000028602.25.13502201903344035041035608180YZU-1.5-4150014400.150.51308080121701401541626015YZU-2-4200014400.150.51308080121701401541626015.5YZU-2.5-4250014400.180.61509090141851501721828021YZU-3-4300014400.180.61509090141851501721828023YZU-5-4500014400.250.75180110112182201802301834037YZU-8-4800014400.551.5220140120222652252662541548YZU-10-41000014400.551.5220140120222652252662541549YZU-15-41500014400.751.9260150140263102453032845077YZU-20-42000014401.12.6260150140263102453032845082YZU-30-43000014401.53.63101701603338028535630536130YZU-50-45000014402.25.13502201903344035041035608180YZU-75-47500014403.78.438025022033(45)44634042540615230YZU-100-410000014405.51144028024036(52)53041047545710435YZU-140-414000014407.5154802802606-4557549856060832700YZU-3-630009600.250.84180110112182201802201834039YZU-5-650009600.371.2220140120222652252662541550YZU-8-680009600.551.5220140120222652252662541567YZU-10-6100009600.752.2260150140263102453052845083YZU-15-6150009601.13.13101701603338028535630536136YZU-20-6200009601.54.03101701603338028535630536140YZU-30-6300009602.25.63502201903344035041030608190YZU-40-64000096037.23502201903344035041030608210YZU-50-6500009603.78.438025022033(45)44634042540615230YZU-75-6750009605.51144028024035(52)53041047545710435YZU-100-61000009607.5154802802606-4557549856060832610YZU-140-614000096010224802802756-4557549857575880700YZU-5-850007200.752.2260150140263102453052845083YZU-10-8100007200.752.43101701603338028535630536145YZU-20-8200007201.54.33502201903344035041035608210YZU-30-8300007203.78.43802502203344634042540615230YZU-50-8500007205.5114402802403553041047545710435YZU-75-8750007207.5154802802606-4557549856060832610YZU-100-810000072010224802802756-4557549857575880700振動源三相異步電動機為各類振動機械通用激振源。如振動給料機，振動輸送機、振動烘干機、振動放礦機、振動落砂機、振動篩分機、料倉的振動防閉塞等?？蓮V泛應用于電力、建材、糧食、煤炭、礦山、冶金、化工、輕工、鑄造、鐵道、水泥、港口等待業，深受廣大用戶歡迎。環境溫度：不超過40oC　　?！　“危翰怀^(guò)1000米電源電壓：380伏　　　　 電源頻率：50赫茲防護等級：IP54　IP55　　接　　法：Y 或 Δ絕緣等級：B、F　　　　　工作方法：S1（連續）
